1.Color 12.1' LED monitor with high resolution, USB port;

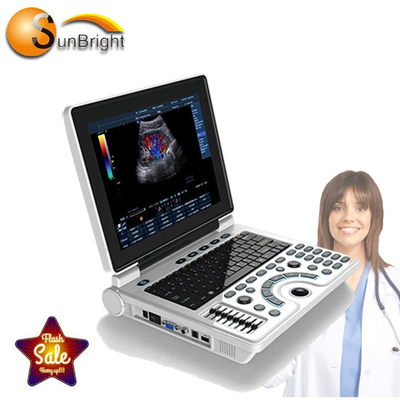

2.Light weight of 2.5kgs, and Laptop design;
3.Built-in battery can drive the main unit to work for more than 3 hours;
4. General, OB/GYN, cardiology, urinary, small organs, and so on
5. VGA Outpout,AV Outpout,working station, connect with computer, external monitor and HP printer directly
Main Specifications | ||
Scanning mode | electronic scanning | |
Display modes | T35R60GB convex array probe: B, B/B, 4B, B+M, M; T50R20GB type micro convex probe: B, B/B, B+M, M; T65R13GB type cavity probe: only B; T75L40GB type linear array probe: only B; | |
Image multiplying factor | 35R60GB convex array probe, Type B, real-time state:×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0; ×0.8, ×2.0 (display penetration depth); T65R13GB type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5. | |
M type: | M type scanning has eight kinds of speed can be selected; M mode or B+M mode :When the heart rate of more than 100, measurement error will increase | |
Zoom | Local x 2.0 magnification rate | |
Dynamic range | 0~120dB adjustable | |
Frequency | T35R60GBconvex array probe real-time scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion; T65R13GB type cavity probe/ T75L40GB type linear array probe real-time scan: 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion. | |
Focus position | Sending: 1, 2, 3 and 4-segments dynamic electronic focusing; when 1、2-segments focus, the focus can be moved. Receiving: receive real-time dynamic focus by focus | |
Measuring function | Distance, Circumference/Area (method of ellipse, method of loci), Volume, Heart rate, Gestational Weeks (BPD, GS, CRL, FL, HC、AC), Expected date of confinement and Fetus weight, etc. | |
Annotation function | Hospital name, Patient’s name, Age and Gender; 64 body marks (with probe’s position); Full-screen character annotation; Real-time clock display; | |
Puncture guide | 3.5MHz convex array probe can display puncture guide line in B mode. | |
Gain control | 8 segments TGC and overall gain can be adjusted respectively. | |
Image polarity | left and right flip, black and white flip, up and down flip. | |
Permanent storage | ≧128 images. | |
Image playback | series playback or check one by one | |
Image processing | γ correction, Frame correlation, Point correlation, Line correlation, Digital filtering, Digital Edge Enhancement and Pseudo Color Processing, etc. | |
USB interface | Only for U disk storage image, image format is BMP. | |
Output interface | SVGA video output offers connection to SVGA color display; workstation, etc. PAL video output offers connection to PAL display, video image recorder and image. |
Optional probes:
T50R20GB type micro convex probe;
T65R13GB type cavity probe;
T75L40GB type linear array probe;
Other Specifications:
Name | Specifications |
Display | 12.1 inch LED display. |
Grey scale | 256 levels |
Running hours of Battery | ≥8 hours |
The battery pack continuous working time | ≥2h |
Input power | AC 110V/220V±22V,1.5A |
Battery | 2500 mAh |
Net weight | 2.5 kg |
Size of Main unit | 309 ×312 × 68(L×W×H)(mm3) |
806H Standard Configuration:
Item | Model | Qty | Remark |
1 | Main unit of 806H | 1 | |
2 | T35R60GB convex array probe | 1 | |
3 | Battery Adaptor | 1 | |
4 | Power Line | 1 |
